MBI Winpact One Fermentation System (FS-06 Series)
The most versatile, price and space-saving fermentation system is now available from our Winpact fermentor product line-the Winpact One Fermentation System.
Winpact One is not only compact in size but also provides all the necessary tools as a standard bioreactor. The duo heating system allows you to choose any vessel type up to 10L for any application needs. The optional expansion module allows you to add additional devices to enhance the capability of the system. All necessities such as temperature, anti-foam, pH and DO probe are all included in the standard package.
- Remote control software connects up to 16 systems(16 vessels) at the same time via PC.
- Compatible with any vessel types up to 10 liters.
1.Single wall dish bottom vessel, 1L
2.Double jacketed dish bottom vessel, 3L
3.Single wall air lifter vessel, 5L
4.Double jacketed air lifter vessel, 5L
5.Single wall dish bottom vessel with heating blanket, 5L
6.Single wall plain bottom vessel with heating base unit, 10L

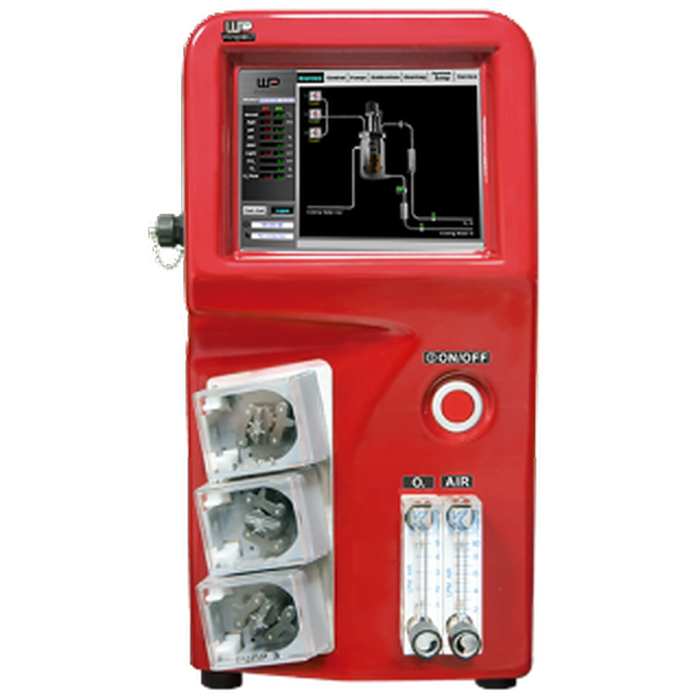

MajorScience Winpact One Fermentation System (FS-06)
- Duo heating system, thermostat and dry heating combined in one
- Most versatile and compact system on the market ((WxLxH) 250x510x500mm)
- Four Interchangeable types of autoclavable glass vessel
- Control up to 16 systems from a single interface
- Compatible with microbial and cell culture applications
- Intuitive user interface for self-explanatory time with multi-language support
- Ethernet communication with Winpact SCADA software, and IP addressing
- Expansion module available for system upgrade for optional devices
|
Control panel |
8" Color touch-screen interface |
|
Communication port |
|
|
Program storage |
Up to 59,994 process programs |
|
Log data storage |
Up to 100 process monitoring data files |
|
Cabinet material |
ABS front panel and painted iron housing |
|
Dimension |
Footprint: W x L = 9.84" x 20.08" (250 mm x 510 mm), Height: 19.69" (500 mm) |
|
Rated voltage |
110V~/220V; 50/60 Hz, 10A |
|
Weight |
Approx. 61.73 lb (28 kg) |
|
Inlet gas flow-meter |
0,0.1-1 LPM (0.5 L), 0, 0.2-2.5 LPM (1 L), 0, 1-10 LPM (3, 5 L), 0, 2-25 LPM (10 L) |
|
Sparger |
L-shape (500ml, 1L); Ring sparger (3L and above); Micro-sparger (C type vessels) |
|
Baffle |
316L stainless steel baffles • 0.5-3L vessel: fixed, unmovable • 5L and above vessel: removable |
|
Heating |
1. Thermostat system: built-in heat exchanger (550W heater, water circulation pump) 2. Dry heating system (heating blanket or heating base unit) |
|
Cooling |
Built-in water module and external water circulator (optional) |
|
Range |
- FS-V-A/ B / SA05P series: 5℃ (41℉) above coolant up to 60℃ (140℉) - FS-V-C series (Double Jacketed): 5℃ (41℉) above coolant up to 60℃ (140℉) - FS-V-C series (Single Wall): without temp control - FS-V-D series : 5℃ (41℉) above coolant up to 90℃ (194℉) * Antifreeze is required to apply |
|
Probe |
Platinum RTD probe (PT-100), non autoclavable |
|
Control mode |
Manual or programmable 15-step PID control |
|
Drive |
Removable top brushless motor |
|
Speed range |
a. For Pitched blade impeller: 30-300 rpm b. For Rushton impeller: 30-1800 rpm(0.5, 1L); 30-1200 rpm(3, 5L); 30-1000 rpm(10L) |
|
Resolution |
1 rpm increment |
|
Impeller |
2 impellers for 0.5-1 L vessel and 0.5-5 L Double Jacketed Vessel 3 impellers for 3 L vessel and above; for 10 L Double Jacketed Vessel Note: customized impellers are available upon ordering |
|
Control mode |
Manual or programmable 15-step PID control |
|
Range |
0 -14 (2-12 for maximum precision) |
|
Resolution |
0.01 pH |
|
Probe |
Gel-filled electrode, autoclavable |
|
Control mode |
Manual/acid start/programmable 15-step PID control with adjustable deadband **pH Stat with smart feeding technology |
|
Range |
0-200%, Control range: 0-100%, adjustable |
|
Resolution |
0.1% |
|
Probe |
Polarographic DO sensor; autoclavable |
|
Control mode
|
• DO cascade response: 1-stage or 2-stage** a. Increase or decrease agitation speed **b. Supply external oxygen source (oxygen enrichment module required, optional device) **c. Adjust DO level using gas mixing control (gas mixing station module required, optional device) • Substrate feeding strategy • **DO Stat with smart feeding technology |
|
Measurement range |
± 2000 mV |
|
Resolution |
1 mV |
|
Probe |
Gel-filled electrode: autoclavable |
|
Probe |
316 L stainless steel protector with insulated PTFE tube, autoclavable, adjustable sensitivity control |
|
Control mode |
Foam: on/off switch Level: on/off switch control with wet/dry probe set up |
|
Pump number |
3 built-in Watson Marlow pumps; 1 external pump expandable: MU-D series required (optional); **2 external pumps expandable: • 1 external pump: MU-D series required (optional) • 1 external pump: 4-20mA or DC 0-10V analog input |
|
Motor type |
Precise stepping motor; minimum speed is 1 rpm |
|
Speed range |
0 - 65 rpm |
|
Resolution |
1rpm |
|
Control mode |
Manual or programmable 15-step feeding control; pump can be assigned for acid, base, antifoam and substrate; **flow rate & total volume calculation |
|
Device type |
316 L stainless steel condenser |
| Control unit |
|
||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Aeration |
|
||||||||||||||||
| Temperature |
|
||||||||||||||||
| Agitation |
|
||||||||||||||||
| pH |
|
||||||||||||||||
| DO |
|
||||||||||||||||
| ORP (optional) |
|
||||||||||||||||
| Foam / level |
|
||||||||||||||||
| Peristaltic pump |
|
||||||||||||||||
| Exhaust |
|
