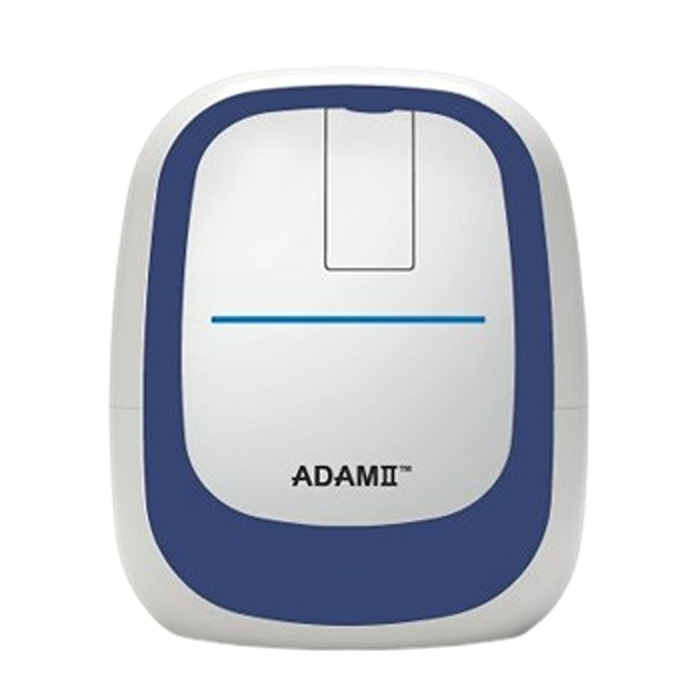

ADAMII-LS Fluorescence cell analyzer
ADAMII-LS Fluorescence cell analyzer
KEY FEATURES & BENEFITS
- Bright field and 3 fluorescence channels (GFP/RFP/DAPI)
- Fluorescence level / Transfection efficiency / Protein expression
- Cell cycle
- Apoptosis
- Total cell counting / Viability / Cell size
- Dot plot
- 21 CFR part 11 compliance for GMP
Advantage #1
High-quality cell analysis
ADAMIITM LS provides high reliability and utilization in cell analysis with multiple frame photographing technique. The slides used for ADAMIITM LS are available in 1 channel and 2 channel. 1ch slide chamber holds a total of 75 frames, allowing a wide range of measurement for high accuracy.
Advantage #2
Fluorescence analyzer for various samples
- Mammalian cell containing fluorescent protein (GFP, RFP)
- Transfection efficiency
- Cell cycle with PI staining
- Apoptosis
Advantage #3
Fluorescence staining for better performance
- By counting only nucleus cells (Iymphocyte) through fluorescence staining, total cell counting becomes easier and more precise.
- ADAMIITM LS uses Acridine Orange (AO) and DAPI reagent, which are cell permeable dye and impermeable DNA dye, respectively, for higher accuracy. Thus, it allows user to measure various reagents and cell samples.
Advantage #4
Easy and simple use
ADAMIITM LS is designed for easy and simple process. It is an user-independent analyzer that does not require any expert to perform. ADAMIITM LS is a maintenance-free and benchtop-sized instrument for user convenience.
Specifications
| Objective lens | 10 X |
| Analysis time |
|
| Measuring range | 5Ⅹ10E4 ~ 5Ⅹ10E6 cells/mL |
| Light source | Bright field, UV / Blue / Green LED |
| Loading volume | 25 μL (1ch, 2ch) |
| Analysis time | App. 2 min – 4 min 30 sec |
|---|---|
| Loading sample volume | 25μL (1ch, 2ch |
| Measuring volume | ≤ 7.8 μL |
| Measuring range | 5 x 10E4 to 5 x 10E6 cells/mL |
| Focusing | Auto-focusing |
| Dimensions | 300 mm (W) x 420 mm (D) x 370 mm (H) |
| Objective Lens | 10X |
| Light Source | Bright field, UV, Blue, Green LED |
| Catalog Number | Product Name | Price | Qty |
|---|---|---|---|
| AD4K-200 | Accuchip 4x Kit (max 400 tests) with Accustain Solution |
$845.00
|
|
