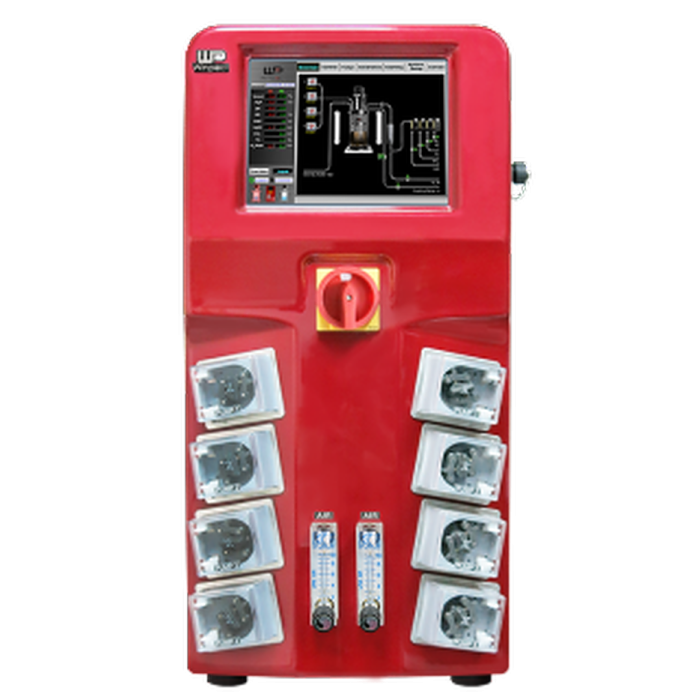

This state-of-the-art fermenter/bioreactor is constructed with the upmost versatility and flexibility to work with all types and sizes of Winpact vessels. The remote control software can control up to 16 fermentors for true parallel operation.
|
Control Panel
|
10.4" Color touch-screen interface
|
|
Communication Port
|
• Remote software control through Ethernet, up to 16 systems per PC
• Data export through USB port
• Analog AUX port for system extension
|
|
Program Storage
|
Up to 59,994 process programs
|
|
Log Data Storage
|
Up to 100 process monitoring data files
|
|
Cabinet Material
|
ABS front panel and painted iron housing
|
|
Dimensions
|
Footprint: W x L = 15.75" x 21.61" (400 mm x 549 mm); Height: 29.14" (740 mm)
|
|
Rated Voltage
|
220V~; 50/60 Hz, 10A, 2000W
|
|
Weight
|
Approx. 114.6 lb (52 kg)
|
|
Inlet Gas Flow-meter
|
0, 0.1-1 LPM (500 ml); 0, 0.2-2.5 LPM (1 L); 0, 1-10 LPM (3, 5 L); 0, 2-25 LPM (10 L); 0, 6-50 LPM (15, 20 L)
|
|
Sparger
|
L-shape (500ml, 1L); Ring sparger (3L and above); Micro-sparger (C type vessels); Center-located sparger (solid state)
|
|
Baffle
|
316L stainless steel baffles
• 0.5-3L vessel: fixed, unmovable
• 5L and above vessel: removable
|
|
Heating
|
1. Thermostat system: built-in heat exchanger (550W heater, water circulation pump)
2. Dry heating system: external devices (heating blanket or heating base unit)
|
|
Cooling
|
Built-in water module and external water circulator (optional)
|
|
Temperature Range
|
• FS-V-A/B/SA05P series: 5°C (41°F) above coolant up to 60°C (140°F)
• FS-V-C series (Double Jacketed): 5°C (41°F) above coolant up to 60°C (140°F)
• FS-V-C series (Single Wall): without temp control
• FS-V-D series: 5°C (41°F) above coolant up to 90°C (194°F)
* Antifreeze is required to apply
|
|
Temperature Probe
|
Platinum RTD probe (PT-100), non autoclavable
|
|
Control Mode
|
Manual or programmable 15-step PID control
|
|
Drive
|
Removable top brushless motor
|
|
Speed Range
|
a. For Pitched blade impeller: 30-300 rpm
b. For Rushton impeller: 30-1800 rpm (0.5, 1L); 30-1200 rpm (3, 5L); 30-1000 rpm (10L); 30-700 rpm (15, 20L)
c. For Broken type/Spiral type/Anchor type impellers (FS-V-SA05 vessel only): 1-60 rpm**
|
|
Impeller
|
2 impellers for 0.5-1 L vessel and 0.5-5 L Double Jacketed Vessel
3 impellers for 3 L vessel and above; for 10 L Double Jacketed Vessel
Note: customized impellers are available upon ordering
|
|
pH Control
|
Range: 0-14 (2-12 for maximum precision)
Resolution: 0.01 pH
Probe: Gel-filled electrode, autoclavable
Control: Manual/acid start/programmable 15-step PID control
|
|
DO Control
|
Range: 0-200%, Control range: 0-100%, adjustable
Resolution: 0.1%
Probe: Polarographic DO sensor; autoclavable
Control: 2-stage DO cascade response, substrate feeding strategy, DO Stat with smart feeding technology
|
|
ORP Measurement
|
± 2000 mV (Resolution: 1 mV)
Probe: Gel-filled electrode, autoclavable
|
|
Foam/Level Control
|
Probe: 316L stainless steel protector with insulated PTFE tube, autoclavable, adjustable sensitivity control
Control: On/off switch; wet/dry probe setup for level
|
|
Pumps
|
• 4 built-in Watson Marlow pumps per vessel (total 8)
• Total 4 external pumps expandable (MU-D series required)
• Precise stepping motor; minimum speed 1 rpm
• Speed: 0-65 rpm (1 rpm increment)
**Minimum speed varies 1-5 rpm depending on medium viscosity
|
|
Condenser
|
316L stainless steel condenser
|
