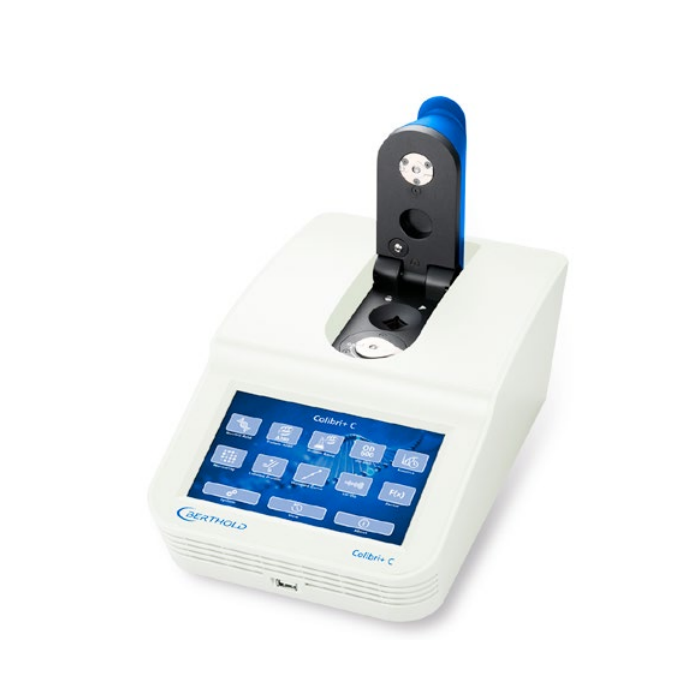

LB 916 Colibri+ C Microvolume/ Cuvette Spectrophotometer

The Colibri+ Microvolume Spectrophotometer

GET CONFIDENCE IN THE QUALITY]OF YOUR SAMPLE
Accurate DNA, RNA & protein quantification in less than 3 seconds

The Colibri+ system family takes microvolume quantification of DNA, RNA and protein samples to a whole new level. The system has been designed to help you accelerate your research by combining ultra-fast measurement in less than 3 seconds with intuitive 7-inch touchscreen stand-aloneoperation. Get confidencein the quality of your sample with reliable UV/VIS-spectroscopy from as low as 1 μl of sample and a CV of
absorbance < 1%.

Whether you need microvolume measurement capability only, or the ability to perform measurements in cuvettes, the Colibri+ family offers you both options. The Colibri+ C provides a complete solution by integrating both fast microvolume measurement capabilities and a cuvette option. For laboratories that only require microvolume measurement capabilities, the Colibri+ standard model offers an affordable alternative.

Technical Specifications

System Performance (Microvolume mode)

• Sample Volume: ≥ 1 µL
• Detection Range dsDNA: 2 – 20,000 ng/µL
• Detection Range BSA: 0.06 – 600 mg/ml
• Path Length: 0.5 mm and 0.05 mm
• Measurement Time :< 3 sec
• Display: 7‘’ glove compatible colour LCD touchscreen

Optical Specifications

• Light Source: Pulsed Xenon flash lamp
• Detector: 2,048 CMOS
• Wavelength Range: 190 – 1,000 nm
• Wavelength Accuracy: 1 nm
• Bandwidth: 1.3 nm
• Absorbance Accuracy: 3.0% (at 0.75 A at 300 nm)
• Absorbance Rang(10 mm equivalent): 0.04 – 400 A
• Spectral Resolution: 1.5 nm (FWHM at Hg 253.7 nm)
• Detection AreaMaterial Of Construction: Stainless steel & quartz window with hydrophobic coating

General Specifications

• Dimensions (W x D x H): 206 x 333 x 166 mm
• Weight: 3.5 kg (7.8 lb)
• Power Input:
  • AC 100 – 240 V, 50/60 Hz
  • Output: DC 24 V, 2.08 A
• Certifications: CE, RoHS
• Applications both models: Nucleic Acid, Protein A280, Protein Assay, OD600, Standard Curve,UV-Vis, Factor Colibri+ C only: Kinetics, Labeled Protein,
  Microarray

Cuvette specifications

• Cuvette type: 10, 5, 2, 1, 0.5, 0.2, 0.125, 0.1 mm quartz glass or plastic cuvettes
• Measurement range: 0.002 ~ 1.5 A
• Dimensions
  • Width: 12.5 mm
  • Length: 12.5 mm
  • Height: 45 mm
  • Beam height: 8.5 mm
• Functions
  • Heater: (37 ~ 45 °C)
  • Stirring (1 ~ 8 speed corresponding to 150 ~ 850 rpm)
• Detection range:
  • dsDNA: 0.3 - 75 ng/μL;
  • BSA: 0.003 - 2.25 mg/mL

Software & Connectivity

• Connectivity:  both models: USB Type A front port Colibri+ C only: additional USB Type B port for PC-connectivity
• PC Software (Colibri+ C only): PC requirements: Windows® 7 and 10, 64 bit
