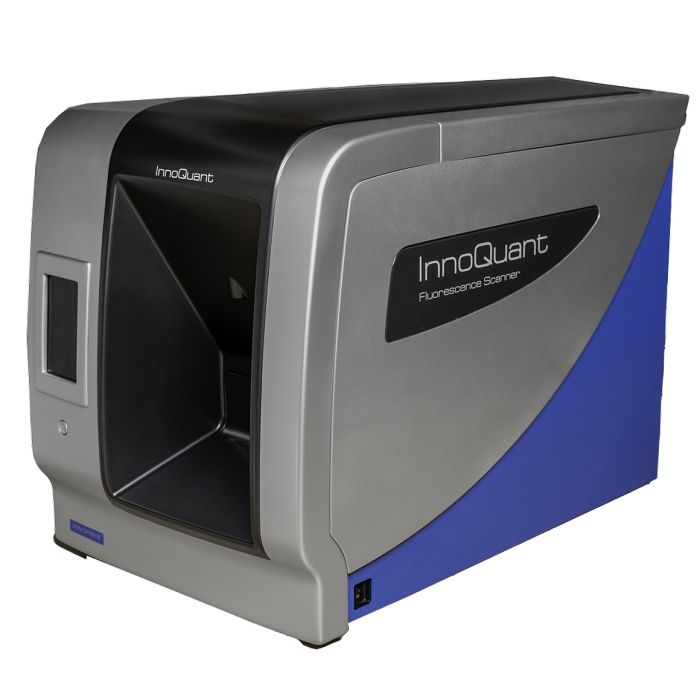

MBI InnoQuant - Fluorescence whole-slide scanner
MBI InnoQuant - Fluorescence whole-slide scanner
The MBI InnoQuant is a linear fluorescence scanner that allows to perform quantitative fluorescence analysis. It is equipped with 4 powerful lasers and very sensitive PMT detectors allowing to scan up to 4 fluorescence channels simultaneously. The laser power and PMT detection are kept stable during the scan, ensuring the same dye excitation and detection conditions through the scan.
Therefore, fluorescence difference in a sample is not due to instrument variations but to a real difference of biomarker expression. The MBI InnoQuant does not use a camera to detect fluorescence, so there is no tiling or stitching process to reconstruct the images. The MBI InnoQuant scanner will help you in your large-scale tissue or cell studies for the localization of 4 biomarkers on a single and intuitive process.
Features
- Acquisition Mode: 4-color simultaneous acquisition
- Focus Mode: 3 different focus options: Full automated in-content focus; real-time autofocus; fixed focus
- Image Format: Non-proprietary image format (multi-resolution TIFF)
MBI InnoQuant
| LASER EXCITATION WAVELENGTH | 375 nm | 488 nm | 561 nm | 640 nm |
| EMISSION FILTERS | FF01-440/40 | FF01-513/17 | FF01-593/40 | FF01-680/42 |
| For customization: 6 additional position filters for each PMT | ||||
| COMPATIBLE FLUOROPHORES* | DAPI Alexa Fluor 350 Hoechst DyLight 350 |
FITC Alexa Fluor 488 Cy2 DyLight 488 |
TRITC Alexa Fluor 561 Cy3 DyLight 594 |
DRAQ 5 Alexa Fluor 647 Cy5 DyLight 650 |
| DETECTION TYPE | 4 independent photomultipliers (PMT) | |||
| PMT GAIN | Linear from 0.01 to 100% | |||
| ACQUISITION MODE | 4-color simultaneous acquisition | |||
| FOCUS MODE | 3 different focus options (Fully automated in-content focus; Real-time autofocus; Fixed focus) |
|||
| SLIDE SIZE | Compatible with standard microscope slides: 26 x 76 mm / 1 x 3 inch Maximal thickness 1.8 mm / 0.07 inch |
|||
| LOADER CAPACITY | Single slide or 24 slide-autoloader | |||
| SCANNING AREA | Adjustable up to 26 x 76 mm / 1 x 3 inch | |||
| SCANNING TIME | 17 min for a scan area of 18 x 18 mm / 0.70 x 0.70 inch at pixel size 0.5 μm | |||
| PIXEL SIZE | From 0.5 to 40 μm | |||
| IMAGE FORMAT | Non-proprietary image format (multi-resolution TIFF) | |||
| BARCODE READER | Automatic barcode reading | |||
| POWER SUPPLY | ~ 100-240VAC, 1.2 A, 50-60 Hz | |||
| DIMENSIONS (mm) & WEIGHT (kg) |
(W) 429 x (D) 696 x (H) 521 ; 52 kg | |||
| DIMENSIONS (inch) & WEIGHT (lbs) |
(W) 16.88 x (D) 27.40 x (H) 20.51 ; 114.64 lbs | |||
| Resolution | from 0.5 to 40 µm/pixel |
|---|---|
| Excitation wavelength | 375 nm, 488 nm, 561 nm and 640 nm |
| Scanning speed | 17 min for a scan area of 18 x 18 mm / 0.70 x 0.70 inch at pixel size 0.5 µm |
| Scanning area | Adjustable up to 26 x 76 mm/ 1 x 3 inch |
| Gain PMT | Linear from 0.01 to 100% |
| Autofocus | 3 different focus options Fully automated in-content focus; Real-time autofocus; Fixed focus |
| Detection | 4 independent photomultipliers (PMT) |
| Image format | Non-proprietary image format (multi-resolution TIFF) |
| Sample | Compatible with standard microscope slides: 26 x 76 mm / 1 x 3 inch Maximal thickness 1.8 mm / 0.07 inch |
| Barcode reader | Yes |
| Dimensions | (W) 16.88 x (D) 27.40 x (H) 20.51 |
| Net Weight | 52 kg |
