Rotary Evaporator - RV 3 series
Rotary Evaporators
DISTILLATION HAS NEVER BEEN MORE EASY AND INTELLIGENT
Distillation is one of the most critical functions in the laboratory. Irrespective of whether an experiment is conducted for academic, pharma, chemical, or other industries, distillation is central to most applications. For a successful distillation, the laboratory requires an effective rotary evaporator with modular design and highest precision at best.
IKA rotary evaporators have set new standards for safety, efficiency, and ease of use. With a wide range of products in the offering, the RV series fits in perfectly with your laboratory setup. These rotary evaporators offer excellent and highly advanced distilling solutions to provide an enhanced user experience.
IKA ADVANTAGES
- Best-in-class cooling surface of 1600 cm² with the option to upgrade up to 3000 cm² allows for a particularly fast distilling process
- Ergonomic design for easy handling
- State-of-the-art safety features to protect sample and user
- Patented volume-controlled distillation for especially accurate results
- Automatic boiling point detection - simply switch on the device and press start
MULTIPLE SOLUTIONS FOR DIFFERENT LAB REQUIREMENTS

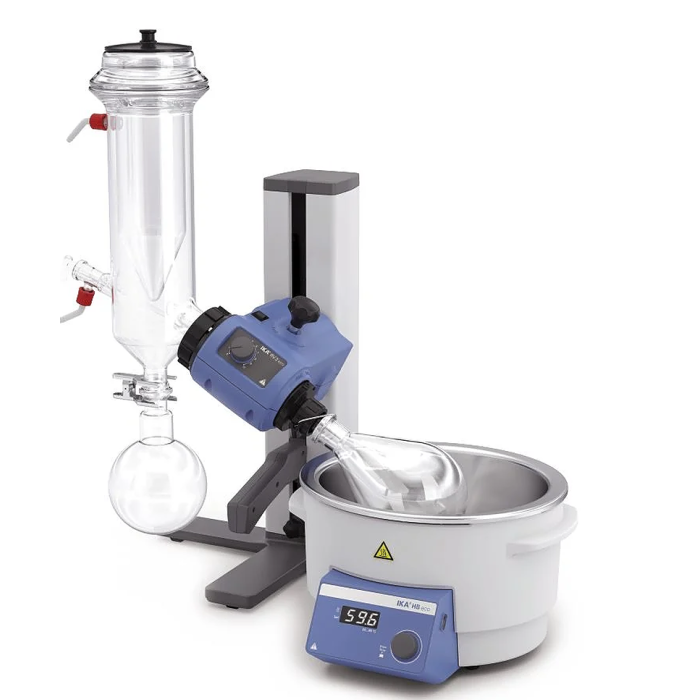

RV 3 series - our starter models
These entry-level rotary evaporators are perfectly suited for diverse activities in R&D, quality assurance and laboratories in the academic, chemical, pharmaceutical and biotechnological industries. Despite being an entry-level model, this feature-rich product includes a new 4L heating bath with a digital temperature display and ergonomic handles. The single-handed manual lift with adjustable immersion angle facilitates precise positioning of the glassware. RV 3 also incorporates advanced safety features.
Technical Data
| Type of cooling | vertical |
| Cooling surface | 1600 cm2 |
| Motor principle | DC |
| Speed range | 20 - 300 rpm |
| Speed tolerance set rotation speed < 100rpm | ±1 rpm |
| Speed tolerance set rotation speed > 100rpm | ±1 % |
| Lift | manual |
| Stroke | 150 mm |
| Heating temperature range | room temp. - 99 °C |
| Dimensions (W x H x D) | 440 x 530 x 330 mm |
| Weight | 28.3 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 20 |
| Voltage | 100 - 240 V |
| Frequency | 50/60 Hz |
| Power input | 1400 W |
| Cooling System Type | Vertical |
|---|---|
| Cooling surface | 1600 cm2 |
| Drive Motor | Brushless D.C Motor |
| Reversible direction of rotation | No |
| Lift | Manual |
| Stroke | 150 mm |
| Speed Range | 20 - 300 RPM |
| Speed tolerance set rotation speed < 100rpm | ±1 rpm |
| Speed tolerance set rotation speed > 100rpm | ±1 % |
| Temperature range (°C) | Ambient to 99°C |
| Heating bath temperature range | room temp. - 99 °C |
| Dimensions without glassware | 440 x 530 x 330 mm |
| Ambient Operating Range | 5 - 40°C |
| Permissible relative humidity (%) | 80% |
| Weight of evaporator incl. heating bath without glass parts | 28.3 kg |
| Protection class DIN EN 60529 | IP20 |
| Rated voltages | 100 - 240 V |
| Frequency | 50 - 60 Hz |
| power consumption [W] | 1400 W |
| Line voltage | 24 V |
